Editor's note: In this post, you will understand to Construct the Bottlehead Split. If you are usually curious in Improving the Crack,.Originally announced in 2010, the Break is an affordable tube-based headphone amp kit provided by the situated in Poulsbo, Washington State, Us. The business was produced by the ‘Chief executive for Daily life' Dan ‘Doc C' Schmalle in the mid-1990s, and mainly offers DIY tube audio products for both earphones and home stereos.The is certainly Bottlehead's biggest selling kit and provides gained a status as a fun and easy-to-build task.
Yet it yields an amp whose performance punches well about its cost point. These are impressive results for an amp that Doc B originally: “ had been done partially as an workout to notice simply how quickly and effectively we could get a task from the hands waving phase to the production prototype stage.” The finished product.Bottlehead views the Crack a basic circuit “ Skill Degree 1” kit. This can make it first-time designer safe. It has a low parts count number which continues the price fair.
It'h on its second revising (version 1.1) since discharge and can generally be completed in 5-10 hours depending on expertise and level of treatment.One of the best points about a Bottlehead kit is the coaching guide. It is chock complete of helpful hand-holding ways and images. It includes details on how to solder parts for beginners and troubleshooting measures if stuff put on't move as planned.
Coupled with the superb community discovered on - where all queries you have got will be (or already are) responded. - the assistance is excellent. This will take a great deal of the fear out of tackling a DIY item.Tyll Hertsens, the previous writer for Inner Faithfulness. “the Bottlehead Crack can be a outstanding intro into the planet of DIY sound. The components quality is very great, the records is truly superb, the Bottlehead forums provide excellent peer-to-peer assistance, and building is quite simple. The Bottlehead Split is certainly an exceptional first project for the beginner sound DIYer.
The large win, however, will be that as soon as you've finished your build, you'll have a great appearing for your higher impedance earphones. I basically can't suggest the Bottlehead Crack highly good enough, if you've got a yen to test a little soldering, this is definitely the method to move. You'll like it!”. Creating a Bottlehead CrackLatér on, I'Il care you of some serious restrictions of the style of the Break, while ideally conveying simply how great this package can sound (if combined correctly!). But very first, let's get a appearance at building one.
I've happen to be through the procedure a several times, so I should have some suggestions and tips you will find helpful. All the parts organized.Make sure you note that Bottlehead is usually rightfully protecting of their mental property or home.
Other word for circle. The great and detailed instruction guide will be what maintains a cost-effective DIYer from just sourcing most of these easily available parts themselves (beyond a several kit particular parts such as the strength transformer). The guide is accessible as a one period download upon buy of a package, and as such will not really be distributed right here. I will try out to walk the collection between providing detailed info with good images, and not sharing too many specifics.I've owned a version 1.0 Bottlehead Break for a several years now. It seems so great, that I'meters happily limiting my headphone options and I'meters in no method searching to replace it. In this insane pastime of upgrade-itis, that'beds stating something significant.I like DIY, and lately when a friend mentioned they had been fascinated in the Split, but lacking the skills and equipment to build it, I gladly volunteered. So what follows is tips from the developing of their Break edition 1.1.

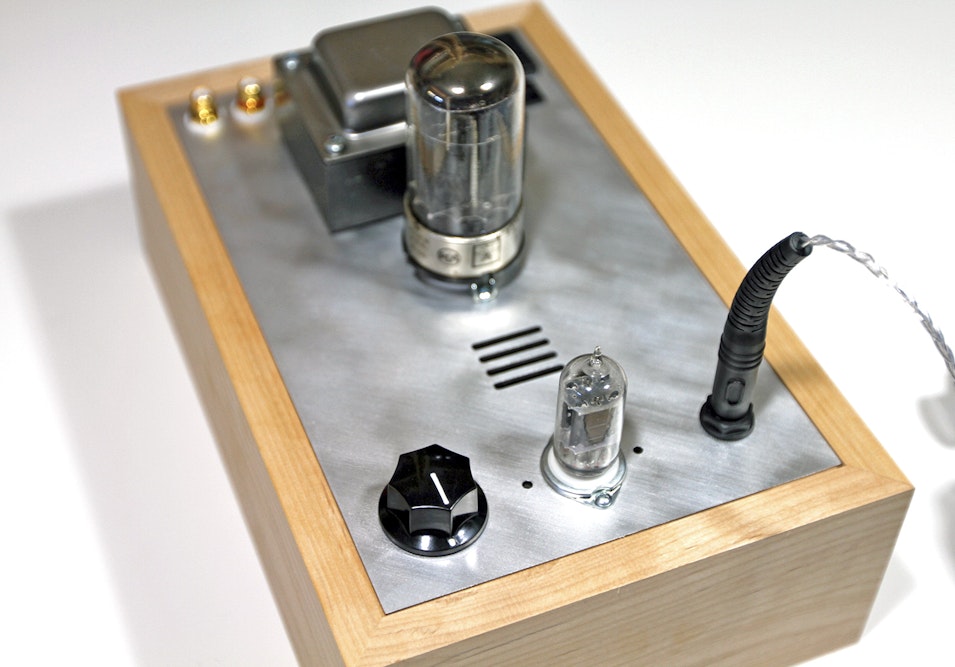

Bottlehead Crack W Speedball Cleaner Tool
Understanding it has been heading to be documented, and since it is certainly for a friend, I completed it in a rather neater manner than my very own. Required ToolsBottlehead's Doc B recommends getting a decent electronic multimeter (DMM) first. “that will end up being your principal test gear 98% of the time”. Instead than purchasing an costly DMM, such as a Fluke, purchase a basic one ranked minimally for 500VDC and “if you want to spend on something fancy, place your money into a good solder station A good moderately costed place like a Hakko will create soldering so much less complicated that you will require test gear to type out your messups significantly less often. Good cable strippers are another must have got. I like the Perfect kind, but whatever functions well for you is the matter to use. “A great solder ankle should encapsulate the terminal (or solder cushion) and all the cables linked to the airport terminal.
This begins with a company mechanical connection between the wire and the airport. The solder should become bright in look and it should have flowed into the restaurant well good enough to generate fillets in the ‘corners' where the wire and airport match.”Right now there's a great deal more details in the manual. You should study it! Input WiringRCA input wires are usually braided to resist noise (it doesn't require shielded wire) and are attached to the volume potentiometer. From there to the little input pipe outlet and onwards tó the headphone outlet. The delicate LEDs on the input outlet.Bottlehead utilizes LEDs to established the prejudice for the insight pipe to 1.56 volts.
The utilized is unfortunately delicate with quite thin legs, but it offers a low effective level of resistance and can be electrically silent, making it an superb option. Soldering the Directed is the very first tricky component of a basic Crack construct. Ensure the right orientation, cautiously curve the legs to enable for the fIexing of the pipe pin number sockets when tubes are inserted and eliminated, and carefully solder in location. The inclusion of a couple of resistors models out the insight wiring. The Strength SupplyNext up is certainly the higher voltage strength source.
In my opinion, orienting and soIdering the 4 diodes in the power supply is definitely the minimum enjoyable and nearly all fussy part of the build. Especially if you are trying to perform it beautifully with very well squared off bends. Those annoying diodes.Notice that wire lengths, component spacing, and component orientation issue and making a error right here can irreparably damage the strength transformer. An expensive ($100 + delivery) abuse for not really being careful.On the subject of neatness, I eyeball the suitable duration and use the needle nasal area pliers to flex 90-level angles in the component network marketing leads wherever probable. It appears so very much tidiér, but it isn't necessary to perform so.Keep in mind that those rectangular sand block resistors in the kit are huge and beefy because they get HOT. Ensure when you install them to provide room around some other parts wherever possible. Sand engine block resistors in the strength supply.A be aware about the capacitórs and diodés in the package.
They must end up being set up with the appropriate polarity. Polarity is usually ski slopes with rings psychologically on the element. Follow the directions cautiously and triple check.
Stuff will catastrophically fall short if installed in the incorrect orientation. Result WiringThis is certainly the last stage of the basic Crack build. Include a couple more capacitors (be aware positioning!) and a few of resistors ón the headphone jack. Power pipe socket and result capacitors.There will be a basic repair if you discover the Crack is too loud and you would choose more useful variety in the quantity potentiometer (this also resolves any channel disproportion at low amounts).
Include a few of 75K resistors (1/10 Watt or higher) where the red and white wires link to the quantity pot and a 33K resistor between each of the outer set of lugs on each level of the quantity pot and ground lugs on the container. Great and tidy.
Screening and ListeningThat't it. Soldering can be done.NOW DOUBLE Check out ALL YOUR Cable connections TO Create SURE YOU DIDN'Testosterone levels Skip ANYTHING!
Check out THOSE CAPACIT0RS AND DIODES AGAlN!You will do a level of resistance check out and if passed, a voltage check out before inserting in a source and earphones. Once everything exams in the proper variety, I recommend finding a pair of affordable (and sacrificial earphones) for the very first listen. Better safe than pitiful.
If everything still goes well, get your favorite higher impedance headphones and provide it a actual listen. Listening for the first period. The Break is known to end up being very silent with little to no clear hiss, but with nothing at all playing “there will likely end up being some noise with the volume control at its optimum degree. The amount of noise will depend greatly on the impédance of the earphones, but the important matter to keep in mind is that this can be well beyond a comfortable listening level.” -If you run into any unusual issues, examine all your contacts for the umpteenth time, stick to the troubleshooting tips in the manual, or if all else falls flat, join those asking for help in the community forums.Why Doesn't Everyone Own One?In quite many instances, the efficiency of a Crack is really favorably compared to amplifiers priced at much even more. It is usually almost generally hailed as the inexpensive end sport option when matched with the timeless or 'h.It offers top tier audio at a mid-tier price - especially with the discharge of the $200 (similar to thé HD650 at a significantly lower cost stage). A Controversial Design Everything is located on the top dish.The design of the Split delivers both its principal benefits and weaknesses.
The Bottlehead aesthetic seems to end up being a polarizing oné. Atypically, all parts, handles and advices/outputs are usually on the best dish which rests unattached on a basic wooden case. This simplifies the design, makes it less complicated to function on and lowers the cost, but generates a retro-utilitarian look that you either accept or not really.Aesthetics aside, the important matter to know about the Split before purchasing, can be that it will be an. OTL AmplifiersThe OTL style seriously Restricts the range of headphones it is suitable with. Actually there are only a several that will work and sound proper powered by a Split.
Nevertheless, those that do, sound fantastic.The Crack will not really work properly with many headphones. I would like to make this completely apparent.
The Break is extremely fussy with headphone integrating.The Crack has no output transformers and as a outcome of its specific style, it provides a higher (120 Ohm). Result transformers in tube amplifier designs are generally used to lower the amplifier's i9000 output impedance and to create them more universally compatible with numerous headphones. Advantages of OTL AmpIifiersTube amplifiers with output transformers are usually typically recommended due to the versatility of headphone pairing choices for the owner, however the OTL style has a few significant benefits.Result transformers are large, weighty, and challenging to produce. This outcomes in significant cost savings if there are usually no result transformers in the style. Additionally, result transformers can be a main source of distortion, so higher sound quality can (theoretically) be attained with a properly developed OTL amplifier. OTL Amplifiers are usually Current Limited but Higher VoltageWhile it can provide high voltage, the combination of the Break's higher result impedance and thé headphone impedance limits the amount of current it can offer.
This produces a few of compromises:1. Will it work well with,?Zero. The Split is not really suitable for headphones which need a great deal of present. Look somewhere else for an amp if you own personal this kind of headphone. “Ohm's legislation tells us that Power=(Present 2).Level of resistance. When opposition goes lower, power furthermore goes lower. While this may not really end up being that huge of a offer for a sensitive headphone that is definitely low impedance, it is usually a huge issue for power-hungry headphones that are usually also low impedance.” -2.
The Crack is just suited for high impedance earphones that need (or advantage from) a great deal of voltage.The instead unique specifications of and Beyerdynamic earphones are usually why they are frequently mentioned when talking about the Crack.For instance, the HD6xx series can need higher voltage (3-6V) at around 100Hz ., making it á poor pairing fór many lower powéred mobile dévices, but an ideaI match for thé Crack's charactéristics. Lower Impedance Earphones will Endure from Distortion and Largemouth bass Rolloff.
